Integrate IDP into your processes

Integrate your published document extraction templates into your end-to-end processes in Web Modeler.

tip

New to IDP integration? See the example IDP integration for a worked example of a simple IDP process.

Create and configure an IDP task​

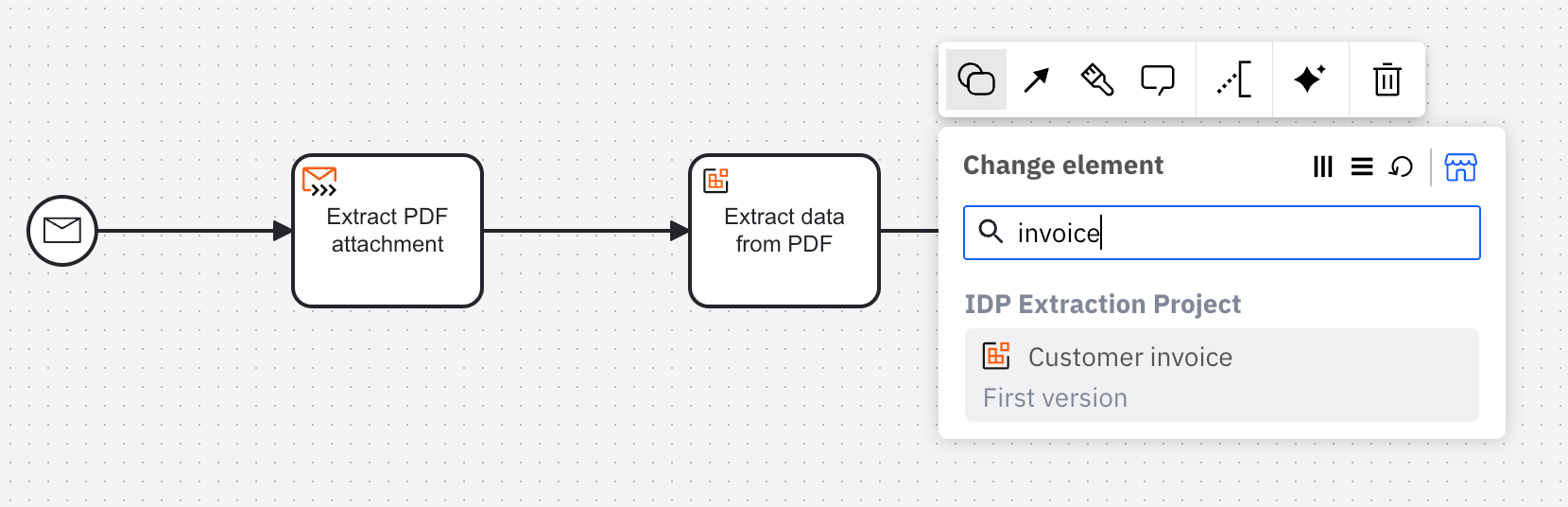

You can apply a published document extraction template to a task or event via the append menu. For example:

An overview of intelligent document processing
  • From the canvas: Select an element and click the Change element icon to change an existing element, or use the append feature to add a new element to the diagram.
  • From the properties panel: Navigate to the Template section and click Select.
  • From the side palette: Click the Create element icon.

You can then configure the document extraction template in the properties panel, via the following sections:

Input message data​

Document​

Specify the document object variable used for document handling, provided as a FEEL expression with the document reference.

For example, if you have uploaded a document via form upload using a documents Key, you can specify documents[1] to retrieve the first document in the array.

Example: documents[1].

info

To learn more about storing, tracking, and managing documents in Camunda 8, see document handling.

Provider authentication​

Authentication​

Ensure the Credentials AWS authentication type is selected.

Access key​

Specify your AWS access key connector secret, provided as a FEEL expression.

Example: {{secrets.IDP_AWS_ACCESSKEY}}

Secret key​

Specify your AWS secret access key connector secret, provided as a FEEL expression.

Example: {{secrets.IDP_AWS_SECRETKEY}}

Provider configuration​

AWS S3 Bucket name​

Specify the name of the Amazon S3 bucket where documents can be temporarily stored during Amazon Textract analysis as a connector secret, provided as a FEEL expression.

Example: {{secrets.IDP_AWS_BUCKET_NAME}} (for the Amazon S3 bucket used for document storage during extraction).

note

The Amazon S3 bucket name must be unique across all your AWS accounts.

Region​

Specify the region where documents can be temporarily stored during Amazon Textract analysis as a connector secret, provided as a FEEL expression. This should match the region where the AWS S3 bucket is located. The default region is us-east-1.

Example: {{secrets.IDP_AWS_REGION}}

Output mapping​

Specify the process variables that you want to map and export the IDP extraction connector response into.

info

To learn more about output mapping, see variable/response mapping.

Result variable​

You can export the complete IDP extraction connector response (for example, the key value pairs extracted from the document) into a dedicated variable that you can then access anywhere in a process. To do this, enter a unique dedicated variable name in the Result variable field.

Example: IDPResult

Result expression​

In addition, you can choose to unpack the content of the response into multiple process variables using the Result expression field, as a FEEL Context Expression.

Error handling​

If an error occurs, the IDP extraction connector throws an error and includes the error response in the error variable in Operate.

Error expression​

You can handle an IDP extraction connector error using an Error Boundary Event and error expressions.

Retries​

Retries​

Specify the number of retries (times) the IDP extraction connector repeats execution if it fails.

Retry backoff​

Specify a custom Retry backoff interval between retries instead of the default behavior of retrying immediately.

Execution listeners​

Add and manage execution listeners to allow users to react to events in the workflow execution lifecycle by executing custom logic.
